Implementation and System Setup Diagrams

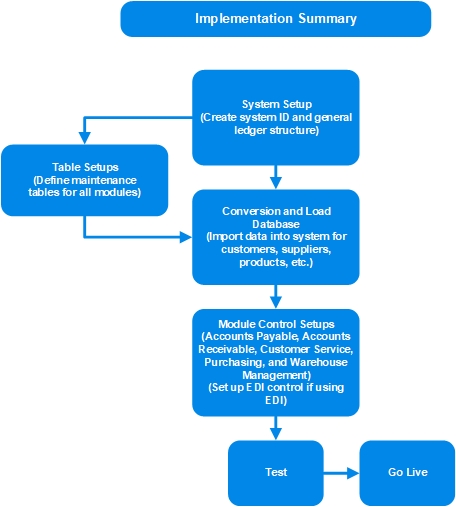

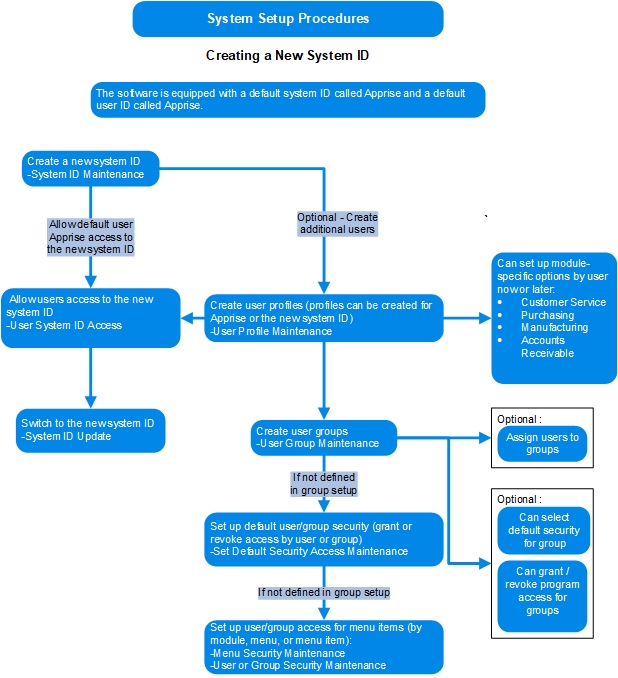

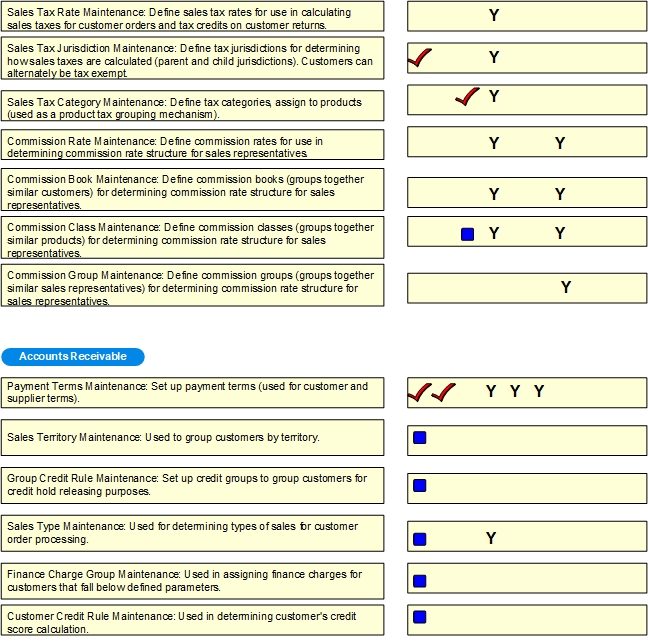

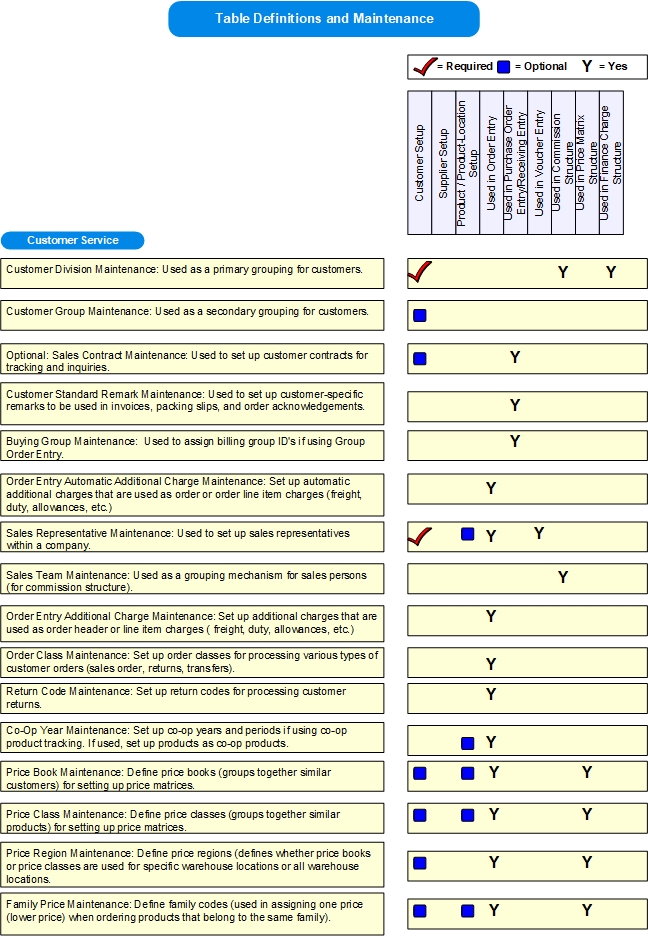

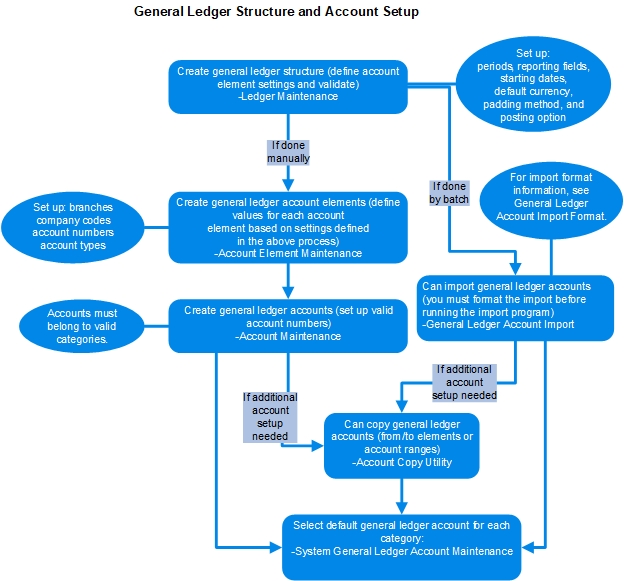

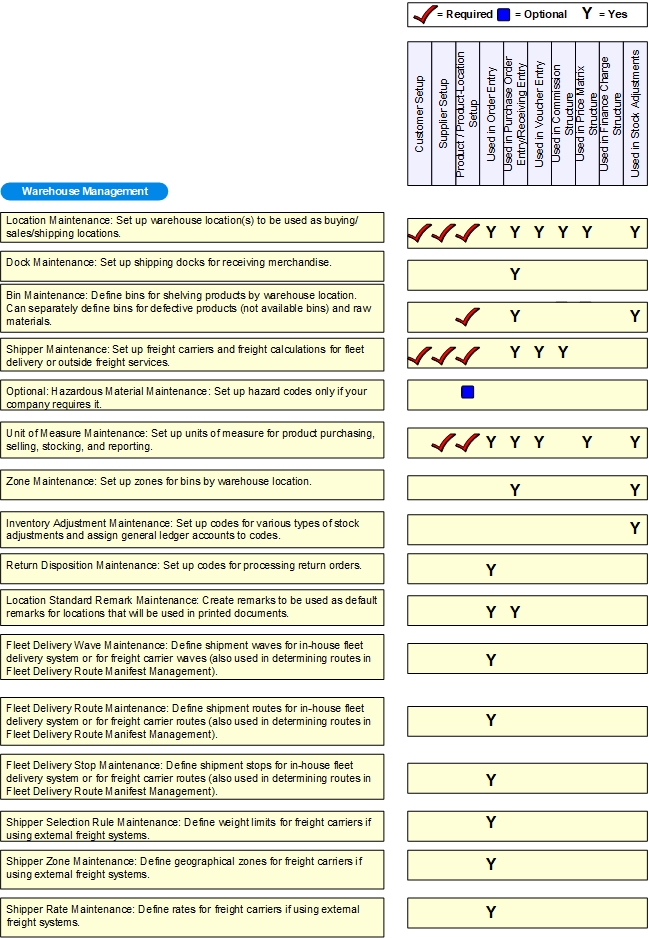

The following diagrams depict the processes necessary for successful implementation of Apprise. This includes defining a system ID, setting up the general ledger structure, and defining tables for data conversion and import.

$Images\implementsummary.gif$

$Images\SystemSetup1.jpg$

For information on defining users, see User/Group Security Setup Diagram.

$Images\SystemSetup2.jpg$

$Images\SystemSetup3.jpg$

$Images\SYSTEMSETUP4.gif$

$Images\SYSTEMSETUP5.gif$
